Oписание продукта

Welcome to SUNFLOWERVDP professional video intercom factory store. All video door phone intercom and parts come from our factory!

Shopping discount:  The buyer whose orders payment totoally reach to the following data within three months  , you will enjoy the shopping preferential from us!

  • Get $20.00 off on orders over US $399
  • Get $40.00 off on orders over US $699
  • Get $80.00 off on orders over US $1299
  • One-time purchase more than 2 sets you will enjoy another 5% to 8%  discount



Warranty:

5 years products and accessories warranty!

***We will test all products more than three times before ship to you, all the packaging will be very strong!

***We will pay for repair fee and free parts fee and the shipping fee from china to your address within the warranty

***All of our products are covered by 7 days no reason to return service, the product can exchange or get refund only under good condition within 7 days!



1v2 High cost performance 7" color lcd Indoor monitor+ Luxury Fingerprint recognition/Password unlock  waterproof(IP65) CCD 700TVL outdoor Camera Video door phone/Video intercom systems for home/apartment! (The outdoor camera can put in the rain directly, no need rain cover)

Two pcs 7inch indoor monitors+Fingerprint outdoor unit (can be put in the rain directly!!! )+ 12V Access control power supply+Door exit button+ Rfid cards unlock electronic door lock full kit!


V70B- 1V2



Brief description indoor monitor:

  • Function: Video intercom/monitor outside/remote unlock the door lock etc
  • Display: Color 7 inch TFT LCD (16:9 display)
  • With micro-processing technology, auto-remote control, excellent performance and high reliability
  • TFT color screen with low power consumption, no radiation and high definition
  • Hands-free intercommunication
  • Intercommunication is available between indoor and outdoor unit.
  • Intercommunication is available between indoor unit and indoor unit.
  • Resolution: 800 x 600
  • Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
  • Adapter Output voltage current: DC15V 1500mA
  • Case: metal material
  • Color: Silver color
  • Installation: Surface mounting
  • Dimensions: 240 x 150 x 23mm (W x H x T )
  • Net Weight: 0.60kg
  • Operation temperature: -20 to +60
  • Support 100 to 150 meters
  • Max support: 2V6

509960375_198

V70B-1

Aluminum panel

V70B_81

  1. Ring cancel
  2. Ring volume&Music adjust
  3. Monitor
  4. Unlock
  5. Intercom

V70B_51

  1. Brightness regulator
  2. Screen color regulator
  3. Nul
  4. Intercom volume regulator
  5. Speaker
  6. DC 15V
  7. Link camera
  8. Link next lcd

V70B_71V70B_101V70B_111V70B_9V70B_2

509960375_198

Feature of outdoor unit: (Fingerprint recognition/Password function)

  • The fingerprint outdoor unit is controlled by fingerprint sensor and code, it is internal integrated with the visual intercom circuit to connect indoor monitor. and use it to intercom, and unlock the door.Connecting indoor phone to intercom , monitor and unlock function!
  • Material: Aluminum alloy front panel, stainless keys;
  • Unlock way: 4 ways to unlock ( Indoor monitor remote unlock, fingerprint unlock, password unlock,keys etc );
  • 2 signal output;1.Relay output; 2. Push(low-level output);
  • Waterproof function: IP65 waterproof function
  • 6 Infrared LED night vision for night monitor
  • Blue LED backlight for digit keys;
  • Waterproof (IP65)/Can put in the rain directly.
  • Working temperature: -30degree-50degree
  • Support all kinds of locks: electronic locks, electromagnetic locks, electrical locks and so on
  • Warranty: 5 years
Details of outdoor unit: (Fingerprint recognition/Password function)
  • Camera resoltution: 1/3 CCD 700lines HD camera
  • Min lighting: 0.02LUX
  • Working voltage: DC12C+10% or DC12V-10%
  • Working current: <260mA RH: 20%-80%
  • Install size: 215(L)mm*105(W)mm*58(H)mm
  • Product size: 225(L)mm*115(W)mm*64(H)mm
Fingerprint data:
  • User capacity: 99 pcs
  • Acquisition time <1S
  • FAR< 0.001%
  • FRR< 1.0%
  • Match time <1S
  • Working temperature: -30degree to +80degree
  • Working current: <200mA
  • Quiescent current <20uA
  • Standard keybpad :12Keys

Operation: (very easy)

  1. The visitor press call button of fingerprint outdoor unit,, the indoor monitor will ringing and show the visitor\'s video
  2. The householder press "talk" button to dual intercom with the visitor, press "unlock" button to unlock the door
  3. The householder press "monitor" button to monitor the status of outdoor unit, press "talk" button to talk
  4. The user put finger on the sense area, the door will be opened after hearing di-di
  5. The user enter 6-digit code (password), and press asterisk key, the door will be opened after di-di

Wiring requirements:

  • 30 m: RVV4 (4 polishing) x 0.5 mm
  • 50 m: RVV4 (4 polishing) x 0.75 mm
  • 100 m: RVV4 (4 polishing) x 1.0 mm

Certificate: CE(EMC .LVD R.TEE), RoHS,FCC

LOGO

logo
-2
-2

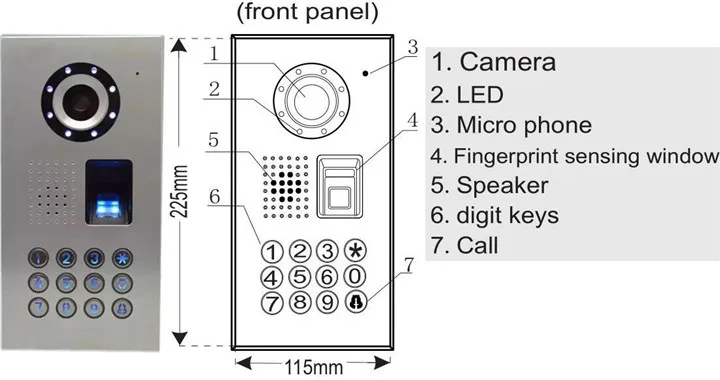

Front panel:

1: Camera;   2: LED;   3: Micro phone
4: Fingerprint sensing window;  5: Speaker ; 6: Digit keys;7: Call

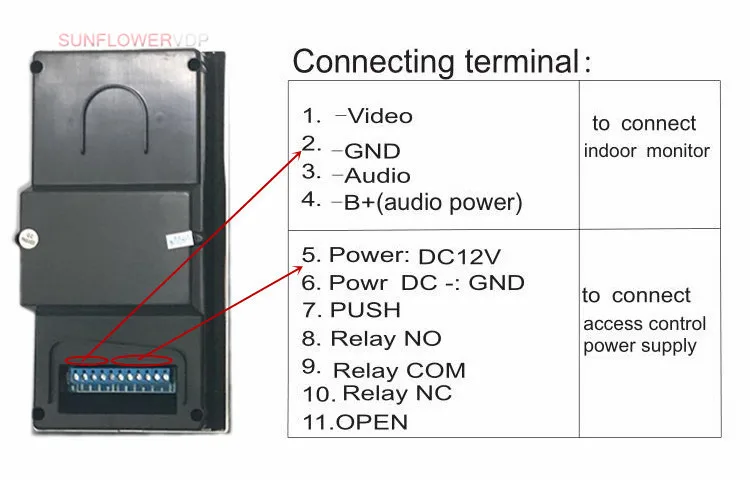

Back side
Connecting terminal:
1: Video;  2: GND;  3: Audio;  4 B+ (audio power).  those parts  to connect indoor monitor
5: Power: DC12V;  6: Power DC -: GND;  7: PUSH;  8: Relay NO  9: Relay COM; 10: OPEN. all those parts to connect 12V access control power supply


Fingerprint outdoor unit details introduce:

1: Camera;   2: LED for infared night vision;  3: Mictro phone.
4: Fingerprint sensing window;  5:Speaker.
6: Digit keys (keypads);  7:Call button

Connection details: (from 12V access control power supply to e-lock, from 12V access control power supply to fingerprint outdoor unit, from fingerprint outdoor unit to indoor monitor)
1: Video-yellow
2:   GND-black
3: Audio-blue
4: B+-red
5: Next monitor-green

4

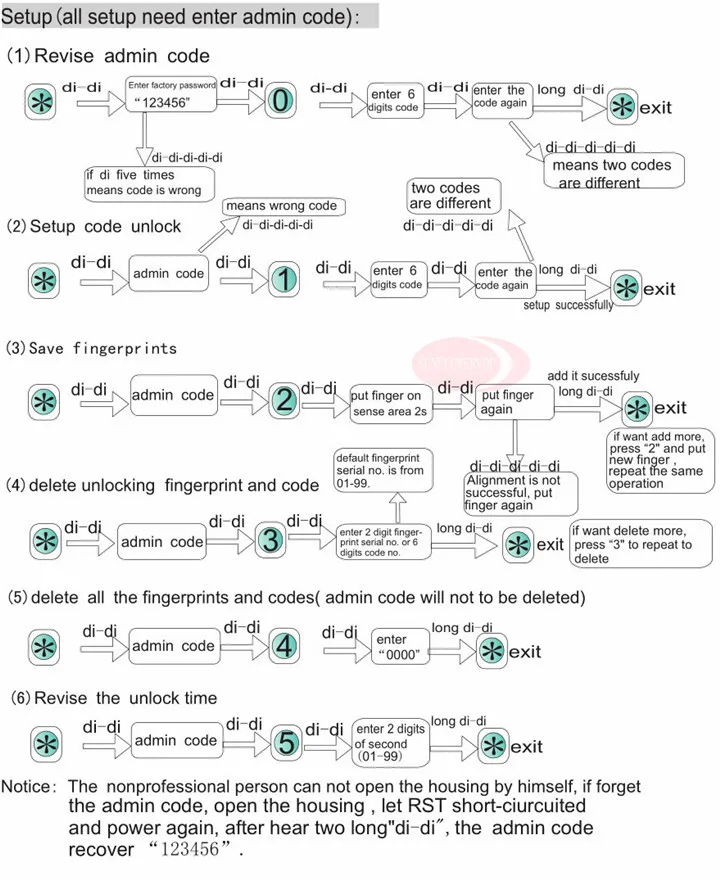

How to set the fingerprint and password? (We will send english manual to you with your order together)

6

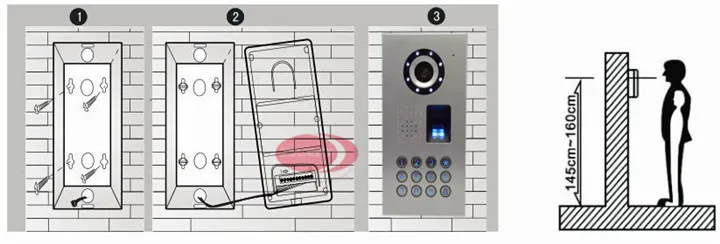

Installation show:



5

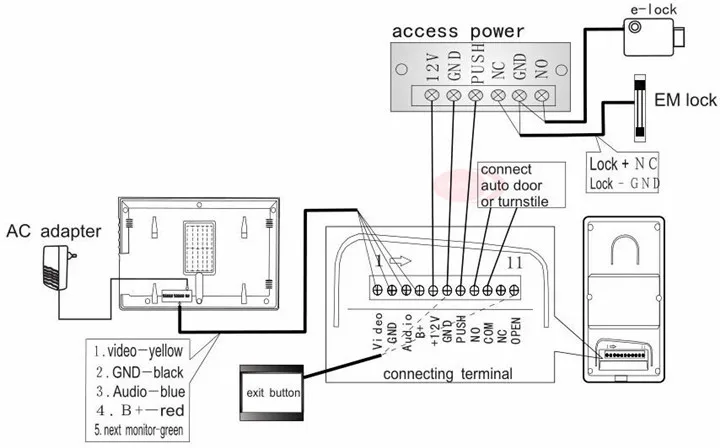

Wires connection example: (1V1,1V2,1V3.......1V6)

V7OB
The wiring diagram for one outdoor unit with one indoor monitor: (1V1)

-1

The wiring diagram for one outdoor unit with multi indoor monitors:   (1V1,1V2,1V3.......1V6)
-2

The wiring diagram for two outdoor units with multi indoor monitors: (2V1,2V2,2V3,....2V6)
V7B


Access control power supply:

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.
_
Rfid electronic lock instructions:

Lock details intruduce: Exit Reader/Infra sensor port/Manual door opener/Entrance Reader/Keychain/button wiring diagram/Power positive/GND/OPEN/DoorBell

Technical Parameters
  • Power supply: DC 12V/500ma
  • Reading distance: 0-6CM
  • Temperature and humidity: -25degree to +55degree, 20% to 95%
  • Demensions: Length 170mm*Width 100mm*High 65mm
  • Card Type: EM4100 card or mifare
  • Reader Frequency: 125KHZ or 13.56MHZ
  • Networking: TTL232 OR Rs 485
  • Record capacity: 1K (supports expansion to 60k)
  • Sensing distance: ID card (0-15cm)/Mifare(0-8cm)
-1
This kinds of outdoor unit (fingerprint recognition/password unlock) support all kinds of door locks, if you need door lock ship together, Pls kindly send message to me! (:


Conditions: New: A brand-new, unused, unopened, undamaged item in its original packaging!



-V70 B 1V2

We will send power adapter to you according to your country!

111

Package Content: (1v2)

  • 2 x Indoor monitors TFT-lcd 7 inches (silver color)
  • 2 x Power adapters for indoor monitors (110V-240V US/AU/EURO/CA 2-pin plug,/UK 3-pin Plug)
  • 2 x Indoor unit wall carriers
  • 1 x Infrared night vision/waterproof(IP65) outdoor camera with (Fingerprint recognition/Password)
  • 1 x Access control power supply
  • 1 x Rfid cards unlock electronic door lock
  • 6 x Rfid cards
  • 1 x Door exit
  • 1 x English user manual/Warranty card
  • Standards screws and expansion bolts for the installation
  • Standards 2-core wires/4-core wires/5-core wires help install (If you need more longer test/install wires, kindly tell me!)

If you need door lock, We have many kinds of door lock for your choose (Electronic control lock; Electromagnetic lock ;Electronic drop bolt lock and so on )  if you need the door lock together, kindly leave meessage to me!
