Oписание продукта

LR-LINK 6822XF-2SFP+ 10Gb Ethernet Card Dual Port PCI-Express fiber optical lan card server adapter Mellanox ConnectX-3 NIC

Feature

1

PCI Express 3.0 (up to 8GT/s)

CPU offload of transport operations

Application offload

GPU communication acceleration

Precision Clock Synchronization

HW Offloads for NVGRE and VXLAN encapsulated traffic

End-to-end QoS and congestion control

Hardware-based I/O virtualization

Specification

1

Features

Brand

LR-LINK

Model

LREC6822XF-2SFP+

Controller

Mellanox ConnectX-3

Interface

SFP LC Port

Bracket

Low Profile Bracekt and Full-height Bracket

Power dissipation

6W

Operating system support

Windows Server 2016 R2/2012 R2/2012/2008 R2/



Windows 10/8.1/8/7 x64



Linux Stable Kernel version 2.6,3.x,4.x etc



Ubuntu 12.04 etc / Vmware ESXi 4.x\\5.x\\6.x



Citrix XenServer 6.1

Connector

2 x SFP+

PCI Express Card Type

PCI Express v3.0 (8.0GT/s) x8; x4,x16

Data Transfer Rate

10 GbE, 2000Mbit/s in full duplex mode per port

PCI Express Voltage

 +12V±8%,+3.3V±8%

Technical Specification

Ethernet Power Management

Yes

Speed

10GbE

IEEE Standard / Network topology

IEEE 802.11ae 10GBase-SR、10GBase-LR、10GBase-ER、10GBase-ZR
IEEE 802.3aq  10GBase-LRM

IEEE 802.3ad Link Aggregation and Failover

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.1Q.1p VLAN tags and priority

IEEE 802.1Qau  Congestion Notification

IEEE P802.1Qbb D1.0 Priority-based Flow Control

IEEE 1588 Precision Clock Synchronization

Jumbo frame support (1024B)

PXE

Yes(iPXE)

Iscsi

Yes

Power management

Yes

SR-IOV

Yes

IPv4,IPv6

Support

RSS

Support

Jumbo frame packet

Yes

DPDK

Support

NFV

Yes

VLAN

Support VXLAN, NVGRE

Operating Environment

Operating Temperature

0℃ to 50℃ (32℉ to 122 ℉)

Storage Temperature

-40℃to 85℃ (-40℉ to 185℉)

Operating Relative Humidity

35% to 90%, non condensing



LEDs

Link: Turns on link (orange)

Act: 10Gb/s on activity (green)


Packing List

1

  • 1 X CD
  • 1 X Network Card
  • 1 X Low Profile
  • 1 X Installation Guide

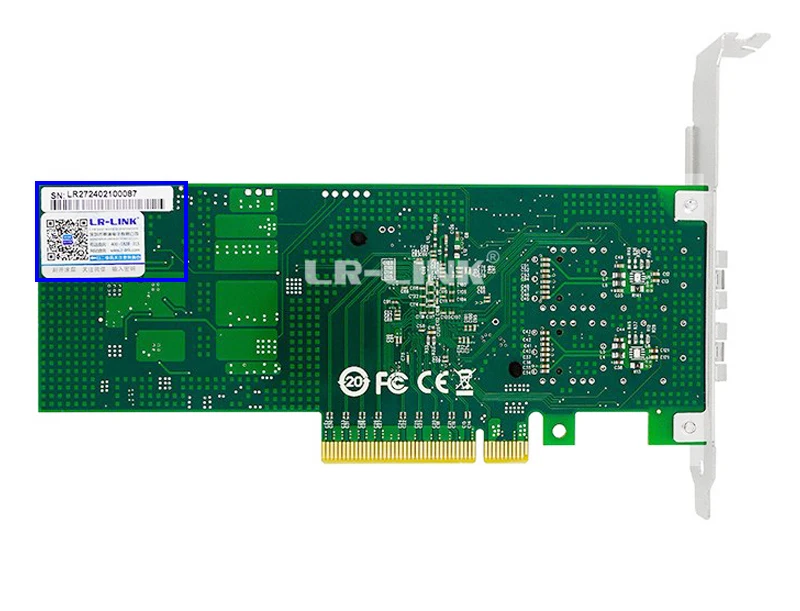

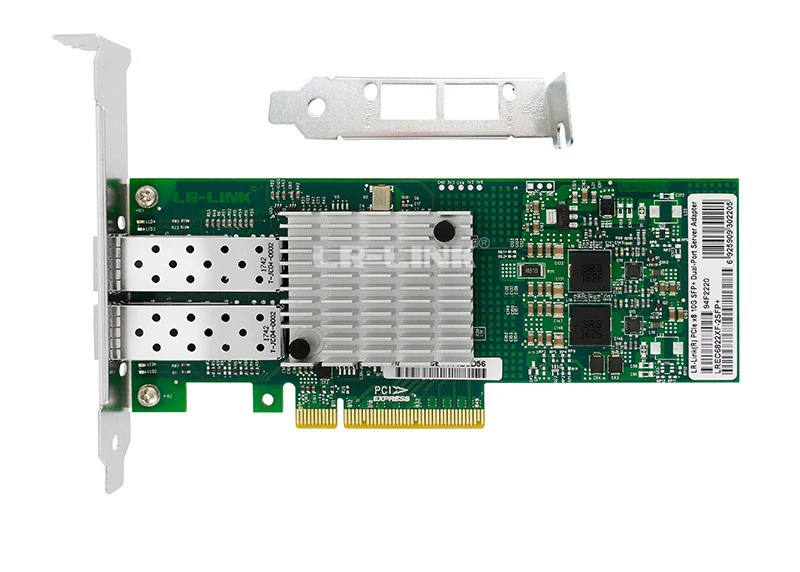

Detail Show
